SIM

SIM - SUSPENSION INTELLIGENT MANAGEMENT SYSTEM

Compatible with Kiload and Reflex

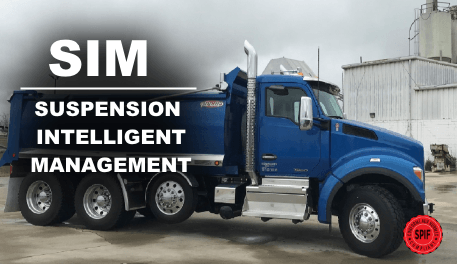

A blue dump truck is parked in front of a building.
A list of axle-weight distribution features including fully automated , spif compliant , reflex compatible , and kiload compatible
A box with a label that says spif on it

SIM- Suspension Intelligent Management System

Compatible with Kiload and Reflex

CLERAL’s SIM, interfaced with Kiload or Reflex onboard weighing systems, is a powerful embedded computerized load equalizer. It assesses the weight of each axle and then distributes it equally between them by controlling the air pressure of the pneumatic auxiliary axle. The Speed and Direction sensor is used to automatically lift the axle when backing up and bring it back down after moving forward at a given distance or speed. The Hazard Lock will raise the axle when the driver applies the hazard lights.


Product Options: Kiload, Reflex SIM

Vehicle compatibility

  • All vehicle types
  • All trailer types
  • All suspension types
  • No truck modifications are required

Product advantages

  • SPIF Compliant
  • Manages auxiliary lift axle(s)
  • Fully automated features
  • Margin or error is +/-1%
  • Data port and computer options
  • Improves safety
  • Vehicle handling
  • Reduced tire-wear
  • Eliminates over load fines and rework
  • Ensures load optimization

Product specifications

  • Device Size: 9”X7”X4.5”
  • Power Supply: 9v - 24v DC
  • Operating Temperature: -22 to 176F
  • Power Supply: 12 or 24 volts
  • Cable length: 40 feet


Feature Details:

  • Product Types: Kiload, Reflex SIM
  • Speed/Direction Sensor
  • Hazard Lock System
